- Simple push-fit jointing system, secured by locking band.
- Advanced corrosion resistant design and construction uses laser welded 316L stainless steel inner liners and 304 stainless steel case. The only stainless steel system to have passed the internationally recognised GASTEC corrosion test.
- The jointing system increases rigidity and ensures easy draindown of any condensate in the flue.
- Capillary break prevents moisture being drawn through the joint.
- Because of the sleeve joint, the insulation in the pipe is able to be continuous along?the length of the system ensuring no hot spots.
- The 25mm high efficiency Superwool? blanket maintains flue gas temperature, maximising efficiency, improving flue draught on start up and minimising condensation.
- Low external case temperature.
- The assembly method allows the inner liner to expand and contract with temperature at the female end. The flue can withstand the temperatures of a soot fire without loosing the integrity of the joints.
- Generous lead-in edges on liner and case for ease of jointing.

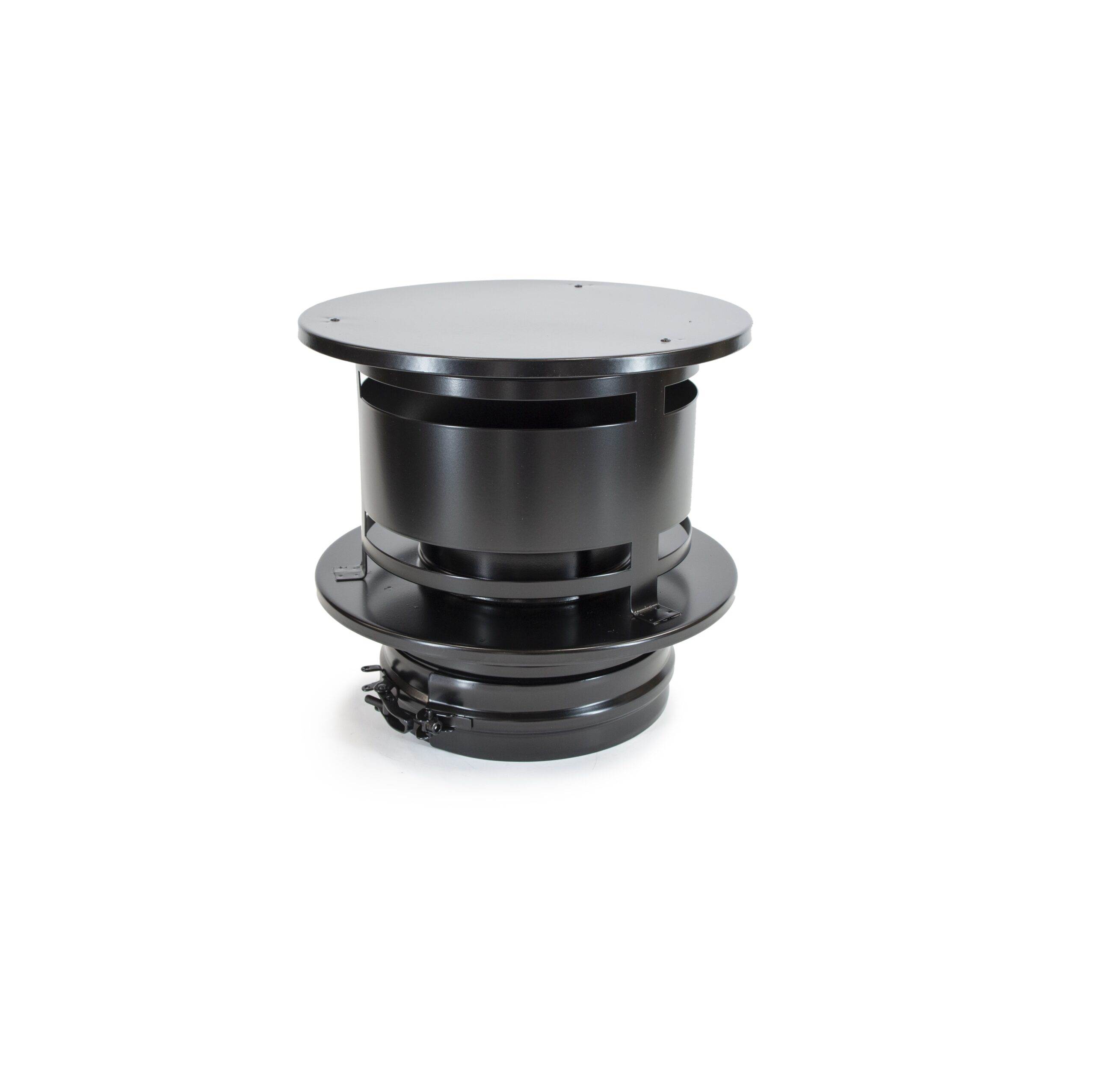

Anti-Downdraught Terminal – Schiedel ICS Twin Wall Flue – Black Powder Coated
£185.16 – £204.48 inc. VAT
Anti-splash Anti-downdraught Terminal without Mesh ? ICS Terminals. ICS is converted into ICS Plus by adding a lip seal to each component with a male form on the liner. This creates a twin wall insulated chimney system designed for the new generation of condensing gas and oil appliances, with continuous operating temperatures up to 200?C, short firing up to 250?C, and positive pressure up to 200pa at the appliance outlet.
|Internal Flue Diameter||
130mm (5"), 150mm (6")
