- Simple push-fit jointing system, secured by locking band.
- Advanced corrosion resistant design and construction uses laser welded 316L stainless steel inner liners and 304 stainless steel case. The only stainless steel system to have passed the internationally recognised GASTEC corrosion test.
- The jointing system increases rigidity and ensures easy draindown of any condensate in the flue.
- Capillary break prevents moisture being drawn through the joint.
- Because of the sleeve joint, the insulation in the pipe is able to be continuous along?the length of the system ensuring no hot spots.
- The 25mm high efficiency Superwool? blanket maintains flue gas temperature, maximising efficiency, improving flue draught on start up and minimising condensation.
- Low external case temperature.
- The assembly method allows the inner liner to expand and contract with temperature at the female end. The flue can withstand the temperatures of a soot fire without loosing the integrity of the joints.
- Generous lead-in edges on liner and case for ease of jointing.

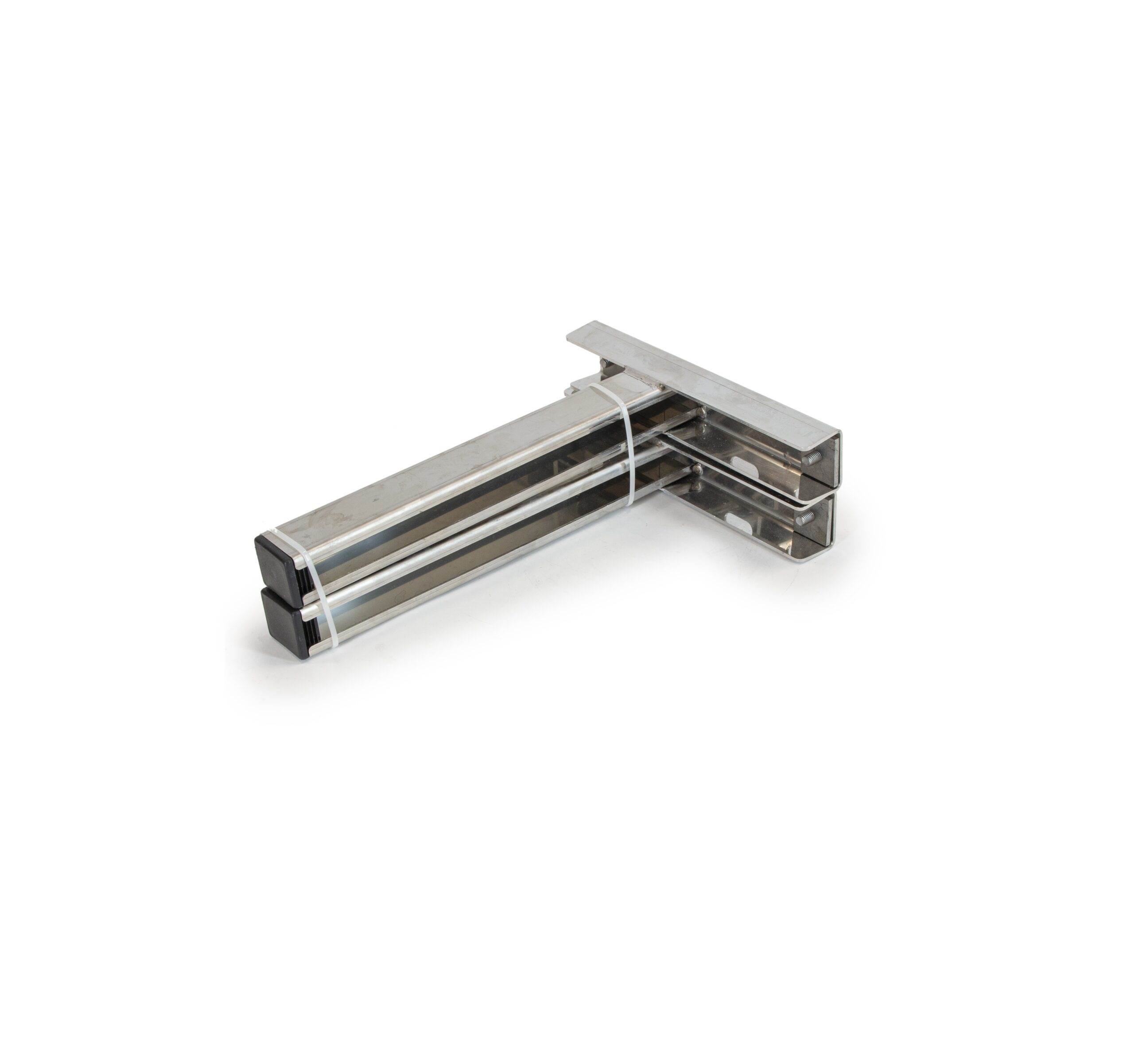

CANTILEVER SUPPORT TYPE 325 (80-150MM)
£183.76 inc. VAT
The Cantilever Supports are used once the position of the support has been established in relation to the chimney route. The plates are secured to the wall using expansion bolts to ensure adequate attachment and support. Supports the system when used in combination with a top plate.
In stockSchiedel ICS Twin Wall, ICID Support Components, ICS Support Components, Schiedel ICID Twin Wall
|Internal Flue Diameter||
130mm (5"), 150mm (6"), 180mm (7"), 200mm (8"), 230mm (9")
