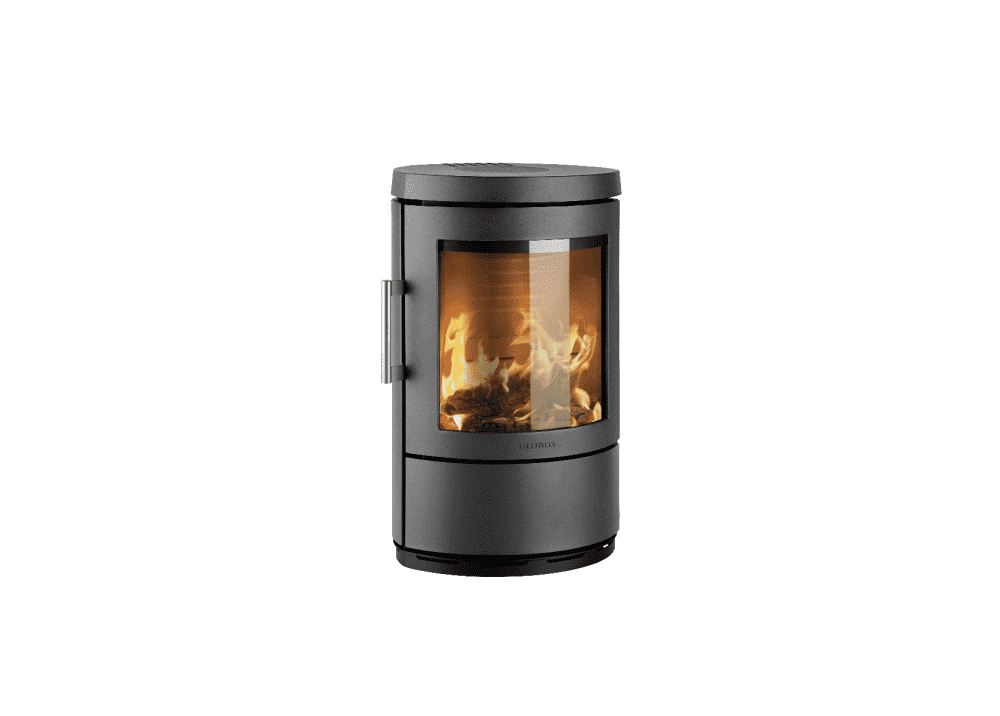

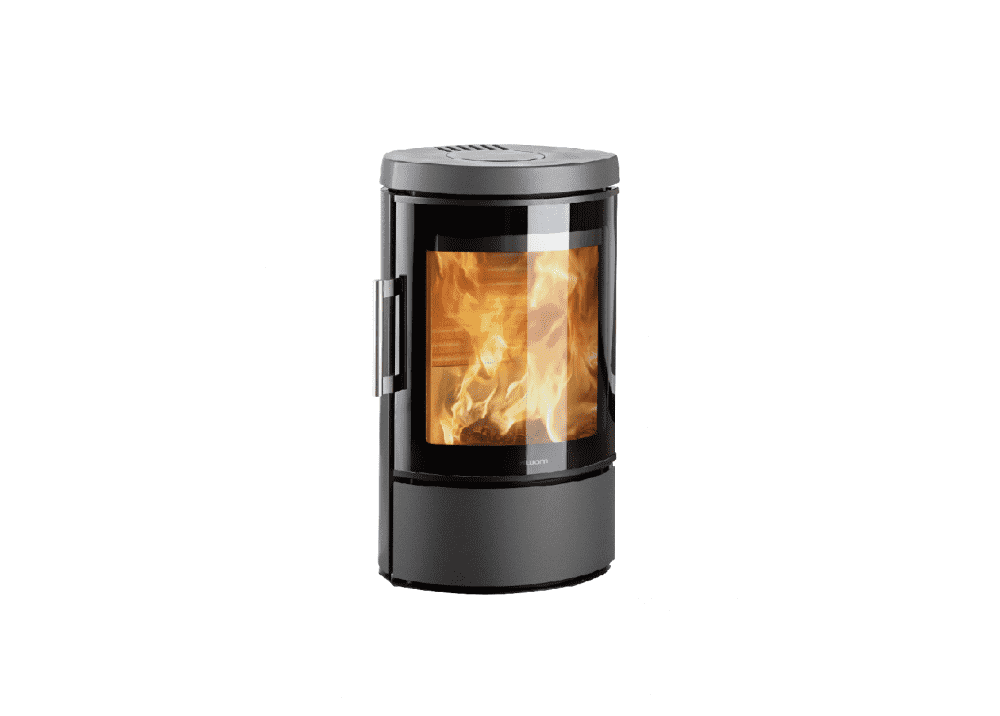

Hwam 3110
The HWAM series combines modern design with a cosy atmosphere.

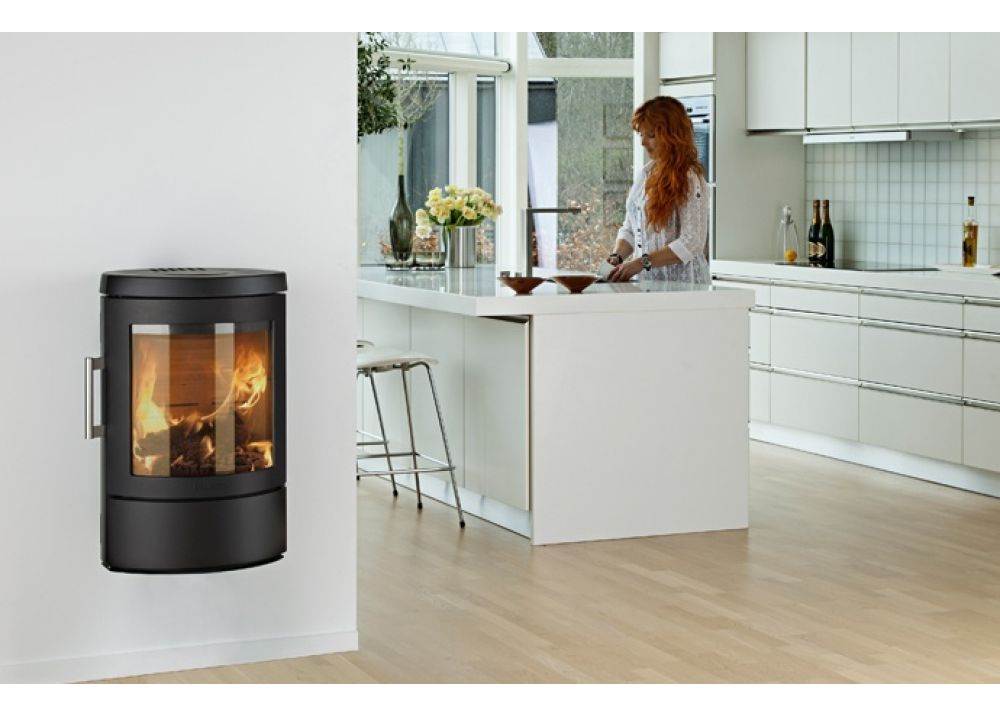

The design of this elliptical stove series originates in pure Scandinavian lines and simple forms that make the HWAM 3100 series more than just stoves. They are also attractive items of furniture that will adorn and warm any home. Hung on the wall, it has a discreet expression and is particularly easy to clean.
Features
Combustion Air System
No oxygen, no fire. It’s that simple. That is why a constant flow of air to the wood-burning stove is needed to create clean and effective combustion in your HWAM.
Convection
All HWAM and WIKING wood-burning stoves are convection stoves. This means that the wood-burning stove quickly emits heat after lighting.
3 way “Airwash”
Dancing flames are both fascinating and relaxing. Furthermore, flames are beautiful in all phases from the initial lighting to the burning of coals.
Comfort
A HWAM and WIKING wood-burning stove is designed for user-friendliness throughout the duration of its service lifetime.
Materials
Here at HWAM, we have been working with sheet iron for more than 45 years, and we know what advantages it provides for our customers.
Unique Door System
All HWAM & WIKING stoves have an easy and unique door closing system, which ensures that the door fits tightly
HWAM® Autopilot™
A wood-burning stove with HWAM® Autopilot â„¢ ensures excellent combustion – for the benefit of the environment and your firewood consumption – without any manual regulation of the air supply.
Technical Specifications
- Technical data
Energy efficiency class HWAM® Autopilotâ„¢ – A
HWAM® Autopilotâ„¢ – Yes
Efficiency (%) – 79.0
Nominal heat output (kW) – 4.8
Smoke outlet (Ø) – 5″/6″
Chimney draught, recommended (Pa) – 12.0
- Product measurements (cm)
Height – 75.5
Width – 47.9
Depth – 41.4
Combustion chamber – 33,0
- Weight (kg)
Steel cladding, c/m door – 87.0
- Connection measurements (cm)
Connection from the wall to centre of top outlet, wall mounted – 20.5
- Fresh air kit
Combustion air system can be mounted, back (Ø 100 mm) – additional purchase – Yes
Combustion air system can be mounted, bottom (Ø 100 mm) – additional purchase – Yes
- Distance to combustible materials (cm)
Mantel piece – 45.0
Floor – 8.0
- Distance to combustible materials Autopilotâ„¢ – insulated flue gas pipe (cm)
Behind – 7.5
Side – 22.0
Sides, in front of the stove – 45.0
In front – 105.0
Furnishing in front – 105.0
Corner, 45° – 10.0
- Distance to combustible materials Autopilotâ„¢ – uninsulated flue gas pipe (cm)
Behind – 12.5
Side – 25.5
Sides, in front of the stove – 45.0
In front – 105.0
Furnishing in front – 105.0
Corner, 45° – 12.5
Dimensions
